burkert 防爆电磁阀6518EEx型
burkert 防爆电磁阀6518EEx型
  • 质量稳定:实行全过程质量监控,细致入微,全方位检测!
  • 价格合理:高效内部成本控制,减少了开支,让利于客户!
  • 交货快捷:先进生产流水线,充足的备货,缩短了交货期!
销售热线

021-37013235 13621973906

图文传真

37013235-818

型号描述

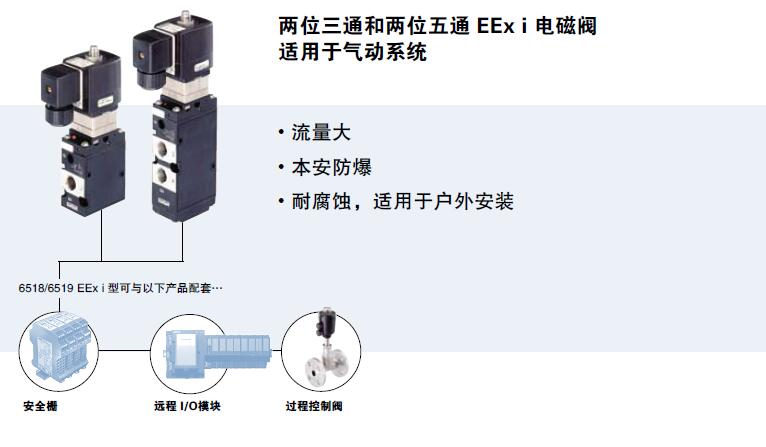

型号 6518 是一种二位三通先导阀,型号 6519 是一种二位五通或三位五通阀门。它们共同构成了一个结构系列。这种阀门可单独使用,或者也可在组块上使用。工作时无持续空气消耗,作用是控制双作用或单作用驱动装置。6014 型电磁阀作为先导式控制装置使用。高品质材料的使用使阀门可以应用于户外或化学环境。结构系列包含了具有 Ex 许可和 NAMUR 法兰图的仪器。作用方式为 C、D 和 H 的单稳态阀门根据 IEC 61508 认证为 SIL2。

1)大流量
2)低电功率消耗
3)单个安装或组块安装
4)标准结构、EEx m 和 EEx i 结构
5)G 1/4” 套头或 NAMUR 法兰

Type Description

The Type 6518 is a servo-assisted 3/2-way valve and the Type 6519 is a 5/2 or 5/3-way valve. Together, they form a product line. The valves can be used individually or in blocks. The valves work without a continuous air consumption and are used for the pneumatic control of double or single-acting actuators. A solenoid valve Type 6014 is used as a pilot. The use of high quality materials makes it possible to use these valves in the open air and under chemical atmospheres. The product line contains units with Ex-Approvals and NAMUR flange interface. Valves with circuit function C, D and H monostable are certified acc. IEC 61508 as SIL2.

1)High flow-rate capacity
2)Reduced power consumption
3)Single or manifold mounting
4)Standard-, EEx m and EEx i versions
5)Threaded port G 1/4” or NAMUR flange
