Type Description

0121为直动式、介质隔离的转动衔铁电磁阀。两位两通和两位三通式。两位三通式可用作分配阀或混合阀。根据不同的应用，可以选择各种膜片材质和工作方式。阀体材质为不锈钢（316L)、PTFE、和 PVC。电磁线圈采用耐化学腐蚀的环氧树脂封装。0121 型配备了手动开关，可用于调试和测试。如有节能要求，所有线圈都可提供节电式，或脉冲式。开关状态可以通过位置反馈以二进制或NAMUR信号显示。与 DIN EN 17301-803 A 型电缆插头配套，该阀的安全防护等级为 IP65/67，不锈钢或塑料阀体式 NEMA 4X。

1）直动式介质隔离电磁阀，最大通径 DN 8
2）免维护转动衔铁技术
3）防震线圈
4）适用于腐蚀性碱液和酸液
5）手动开关结构坚固、使用方便

2/2- and 3/2-way solenoid valve for aggressive fluids

Direct-acting, media-separated valve with diameter of up to DN 8
• Maintenance-free pivoted armature technology
• Vibration-proof, block screwed coil system
• Service-friendly, durable manual override
• Explosion proof version

德国burkert主要产品：
Burkert换挡阀，Burkert旁通阀，Burkert电磁阀，Burkert微流量阀，Burkert升降式衔铁阀，Burkert二通摇杆阀，Burkert隔膜阀，Burkert活塞阀，Burkert气动控制装置，Burkert活塞滑阀，Burkert脉冲阀，Burkert阀岛，Burkert隔膜阀块，Burkert开关柜，Burkert截止阀，Burkert角座阀，Burkert底部排放阀，Burkert球阀，Burkert蝶阀，Burkert先导阀，Burkert调节阀，Burkert开关，Burkert止回阀，Burkert比例阀，Burkert流量调节器，Burkert传感器，Burkert流量测量仪，Burkert流量计，Burkert变送器，Burkert隔膜泵。

邮箱：ctj539@163.com
Q Q ：79238737
联系人：陈总
网址：www.burkertfluid.com

0121型电磁阀连接配件如下：

Type 0121 can be combined with Type 2508 Cable plug + Type 1078 Timer control

++

The 0121 valve is a direct-acting, media-separated pivoted armature valve. It is available in 3/2- and 2/2-way versions. As a 3/2-way version,it can be used as a distributor or mixing valve. Various diaphragm material combinations and methods of operation are available depending on the application. The housing offering includes stainless steel (316L), PTFE, and PVC versions. The solenoid coils are moulded with a chemically resistant epoxy. The 0121 is equipped with manual override for commissioning and testing. For reduced energy requirements,all coils can be delivered with electronic power reduction or as an impulse version. The switching status can be indicated with position feedback as a binary or NAMUR signal.In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65/67 – in combination with a stainless steel or plastic housing NEMA 4X.

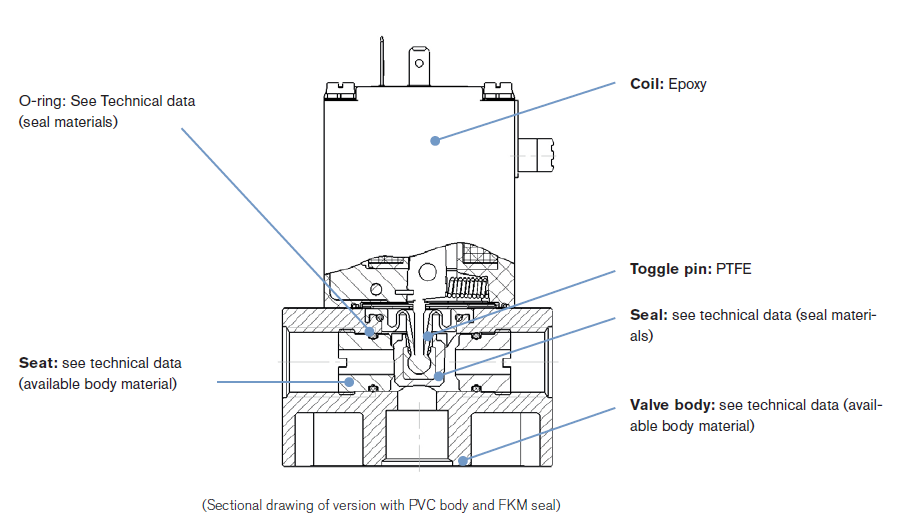

0121型电磁阀结构示意图如下：

0121型电磁阀部分订货号如下：

049654 048940 047859 050795 050085 049267 048749 049348 047810 049228 049337 049678 049291 049697 052800 052302 048698 050967 050701 450543 055244 056934 052441 136290 136292 040482 057086 054595 049113 049017 052161 133109 079653 122632 077191 457453 151733 136205 132098 050158 135416 132096 132097 051701 051577 130625 044771 131364 135858 042457 048673 120402 130934 135028 049533 052181 047916 040062 048760 050491 124239 141134 051256
