Compact design
• Low electrical power consumption
• Short response times
• Hermetically sealing isolating diaphragm
• Non-metallic valve internals

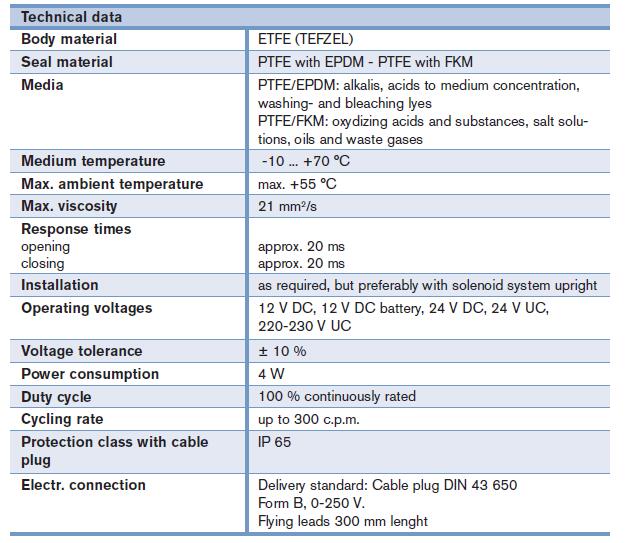

Technical data
Body material   ETFE (TEFZEL)
Seal material PTFE with EPDM - PTFE with FKM
Media PTFE/EPDM: alkalis, acids to medium concentration,washing- and bleaching lyes，PTFE/FKM: oxydizing acids and substances, salt solutions,
oils and waste gases
Medium temperature   -10 ... +70 °C
Max. ambient temperature max. +55 °C
Max. viscosity 21 mm2/s
Response times  opening  closing  approx. 20 ms  approx. 20 ms
Installation as required, but preferably with solenoid system upright
Operating voltages 12 V DC, 12 V DC battery, 24 V DC, 24 V UC, 220-230 V UC
Voltage tolerance ± 10 %
Power consumption 4 W
Duty cycle 100 % continuously rated
Cycling rate up to 300 c.p.m.
Protection class with cable
plug IP 65
Electr. connection Delivery standard: Cable plug DIN 43 650
Form B, 0-250 V.
Flying leads 300 mm lenght

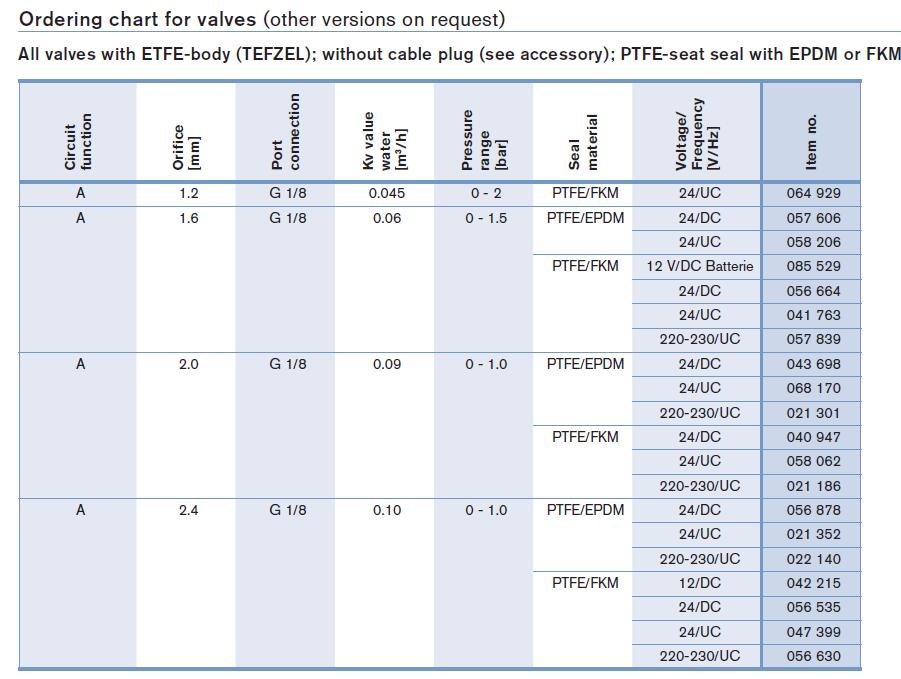

0117型电磁阀订货号如下：

064929、057606、058206、085529、056664、041763、057839、043698、068170、021301、040947、058062、021186、056878、021352、022140、042215、056535、047399、056630

0117型电磁阀配件如下：

none (standard) 0 - 250 V AC/DC  423845
with LED 24 V UC 423849
further versions see datasheet type 2507
