Direct-acting 2/2- or 3/2-way pivoted armature valve

• Direct-acting, media-separated valve with diameter of up to DN 5
• Maintenance-free pivoted armature technology
• Vibration-proof, block screwed coil system
• Suitable for aggressive alkaline and acidic solutions
• Service-friendly, robust manual operation
• Explosion proof versions

The 0330 valve is a direct-acting, media-separated pivoted armature valve. It is available in 3/2- and 2/2-way versions. As a 3/2-way version,it can be used as a distributor or mixing valve. Various diaphragm material combinations and methods of operation are available depending on the application. The standard brass housing satisfi es all European drinking water requirements. Stainless steel (316), PVDF,and polypropylene housing versions complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. The 0330 is equipped with manual override for commissioning and testing. For reduced energy requirements all coils can be delivered with electronic power reduction or as an impulse version. The switching status can be indicated with position
feedback as a binary or NAMUR signal.In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65/67 – in combination with a stainless steel or plastic housing NEMA 250 Cat. 4X.

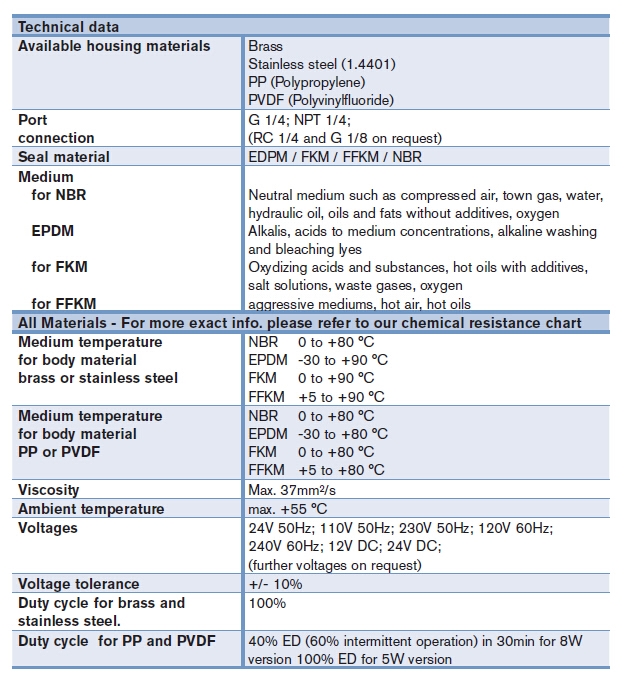

0330型直动式电磁阀技术参数如下：

Circuit function

A 2/2-way direct acting valve,normally closed
B 2/2-way direct acting valve,normally open
C 3/2-way valve, direct acting,when de-energised Port A exhausted
D 3/2-way valve, servo-assisted,outlet B normally pressurized
E Mixer valve, direct-acting,in de-energized position, P2ÒA open, P1 closed
F Distribution valve, direct-acting,in de-energized positon,PÒB open, A closedT 3/2 way valve, universal function, fl ow direction as required

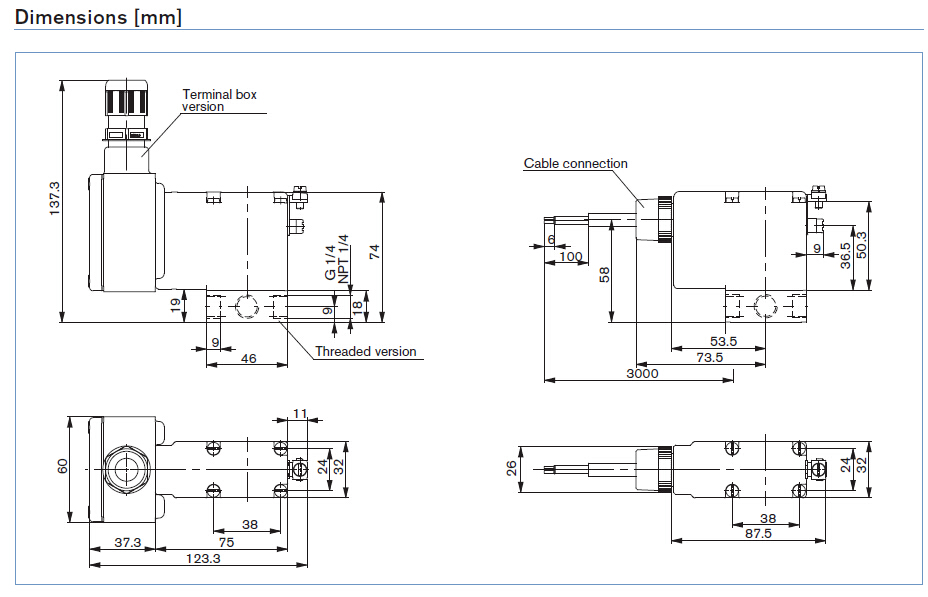

0330型直动式电磁阀 尺寸如下：

0330型直动式电磁阀部分订货号如下：

020293 022883 124909 020292 023984 024563 018410 088496 045653 018188 020286 069006 020294 086553 024902 067214 022105 062398 024019 025246 124912 018276 018857 020873 062695 043005 063116 023472 069079 087837 025084 046007 021660 067731 063118 057573 125507 062624 067007 022619 064512 063786 061321 054261 049969 120184 059802 130117 141917 130146 141919 141920 141921 141923 141928 141929 141931 141932 141933 141935 041103 042129 041105 041107 041108 041116 052344 045024 052059 042218 042695 042329 050483 043324 050979 088240 055788 019078 063625 056984 041858 041137 041139 041141 041147 043129 042696 042903 069917 066230 022294 078556 078559 061077 086921 053406 022340 020550 085599 067160 044693 066033 020528 066032 124922 138316 124925 124927 124928 124930 124932 124933 124935 124937 124938 124940 137077 137079 137076 137078 137081 137083 137080 137082 124619 125567 077495 088175 135080 137075 137073 137074 137085 135624 137084 137086 146203 137089 137087 137088 133712 141556

德国burkert宝德主营产品如下：
Burkert换挡阀、旁通阀、电磁阀、微流量阀、升降式衔铁阀、二通摇杆阀、隔膜阀、活塞阀、气动控制装置、活塞滑阀、脉冲阀、阀岛、隔膜阀块、开关柜、截止阀、角座阀、底部排放阀、球阀、蝶阀、先导阀、调节阀、开关、止回阀、比例阀、流量调节器、传感器、流量测量仪、流量计、变送器、隔膜泵。
