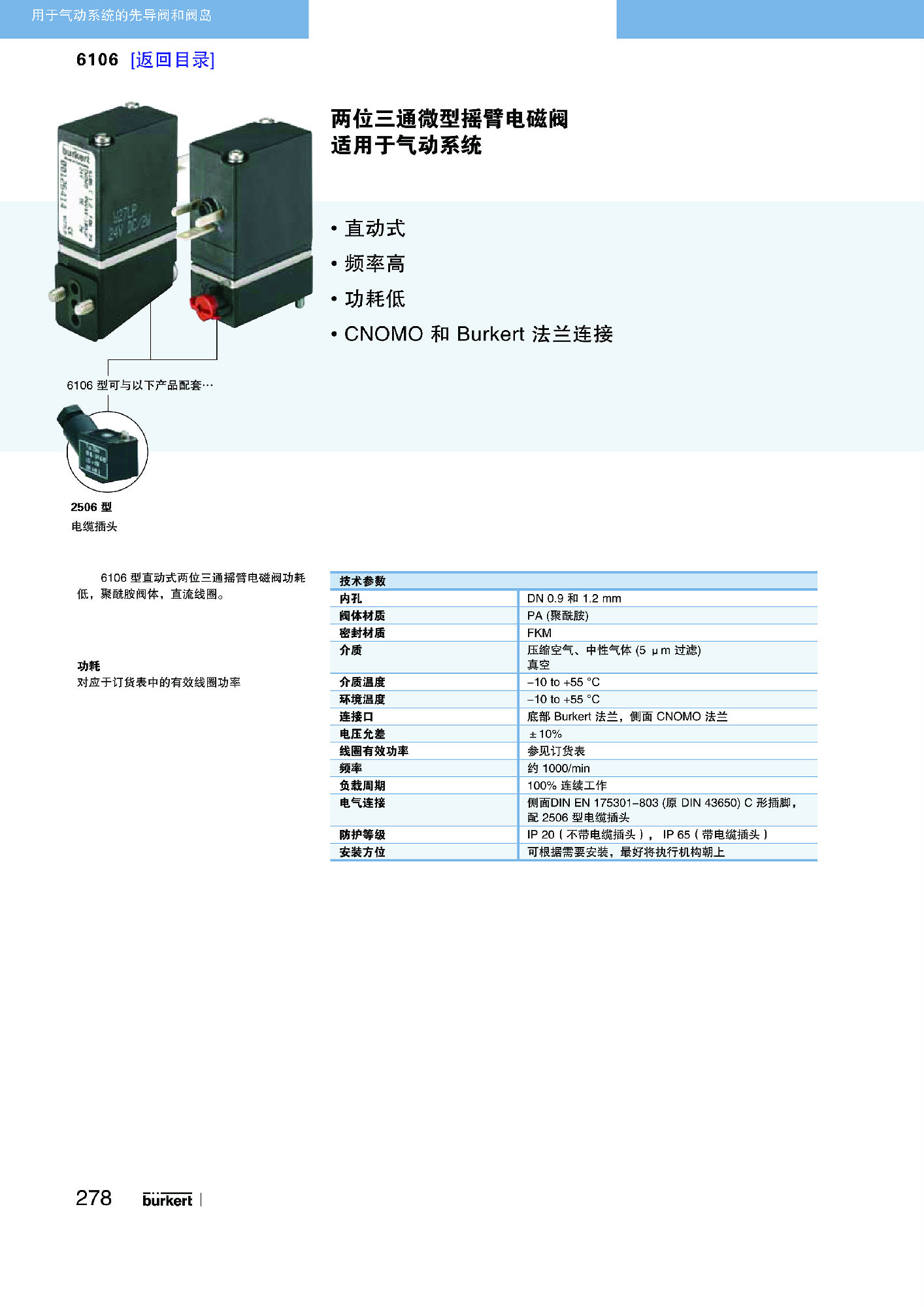

6106 型直接作用式摆动电磁阀特别适用于中性气态介质 传递进入介质中的热量实现最小化,因为还须通过不锈钢板隔断壳体和线圈。可以直接给阀门装上法兰或者将其安装在单层或者多层连接板上。其可供剂量控制、加注、混合和分离之用。
紧凑型结构,排列间距 16 mm
DN 0.9 和 DN 1.2 (10 bar)
使用寿命长
电功率消耗低,以及可以选择 ATEX Ex ia 规格。
适用于气动应用
The direct-acting rocker solenoid valve type 6106 is designed for use on neutral gaseous mediums. The heat input in the medium is minimal, because the housing is separated from the coil by a stainless steel plate. The valves can be mounted directly or also single or manifold mounted. They are used for dosing, filling, mixing and distributing small quantities of medium.
Compact design with 16mm width
DN 0,9 and DN 1,2 (10 bar)
High lifecycle
Low power consumption, ATEX Ex ia on request
For pnmeumatic applications
